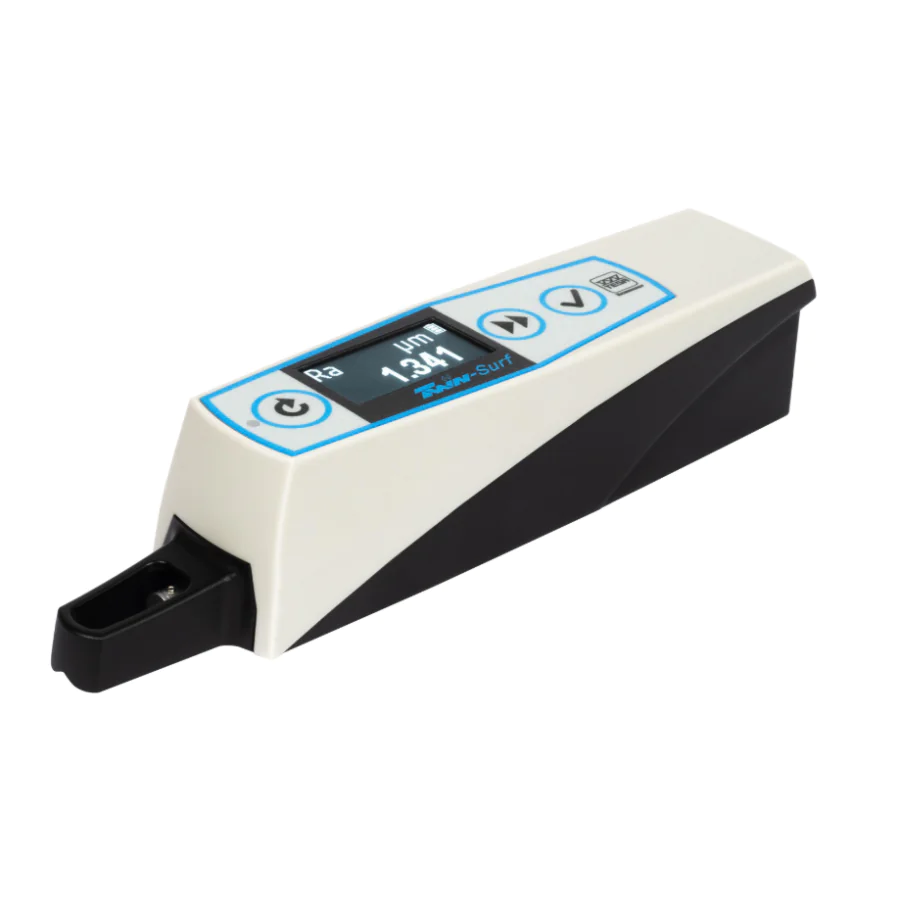

Tesa TWIN-SURF portable roughness tester 06930014
The TESA TWIN-SURF is a compact, portable roughness tester, compatible with any articulated support and powered by a rechargeable battery that enables long-term self-sufficiency.
Its monochrome OLED display optimises power consumption and ensures high contrast for clear reading.
Simplified ergonomics with 3 buttons on the top allows the easy definition of measurement parameters, adjustment of tolerances and starting of the measurement. Each configuration is automatically saved in the internal memory.
| Manufacturer | Tesa |
|---|---|
| Display Type | Inch/Metric |
| waterproof | Yes |
| IP rating | IP67 |
| spc output | Yes |
Specifications
-
- Standard ISO 3274, ISO 4287, ISO 12085
Measuring range Z: ±200 µm X: 17,5 mm
Range of indication Ra = 0 ÷ 50 μm Rt = 0,05 ÷ 200 μm
Max. perm. errors R = roughness in μm 0,05 μm + (5% R)
Resolution 0,001 µm / .01 µin
Material Stylus tip: diamond - Data output(s) USB C
- Measuring force 0,75 mN
- Standard ISO 3274, ISO 4287, ISO 12085
Dimensions
Housing: 160 x 34 x 34 mm Screen: 128 x 64 pixels
Tip: R2 μm, 90°
Degree of protection Keyboard: IP67
Display OLED, monochrome
Weight 200 g
What's included
TWIN-SURF portable roughness gauge
SB 51 probe
Main charger with EU and US charger adaptors
Roughness Standard Ra=2.97 μm
Adapter for 8-mm diameter holder
Key to remove the probe protection
USB A-C cable
USB key including user manual, measuring report, declaration of conformity and Tesa Data Studio software basic version.
R = roughness in μm
0.05 μm + (5% R)
Resolution:0.001 μm / 0.01 μinch
Features
• INSTRUMENT
- Ultra-compact, portable and robust
- High contrast display for comfortable reading in dark environments
- 3 buttons on top of the product for easy instrument configuration
- Interchangeable probes
• AUTONOMY
- Can be operated with power supply or battery
• MEASUREMENT
- Suitable for use in production environments or for incoming inspection
- Access to narrow and deep areas thanks to the 100 mm probe extension (optional)
- 90° probe orientation for cross-sectional measurements
• FUNCTIONS (with DATA-STUDIO, basic version)
- R-profile display
- 13 roughness parameters available
- 10 measurements usable for statistical processing
- Storage of 10 measurement programs
- Each parameter can be individually activated
- Tolerancing possible for each parameter
• DATA MANAGEMENT
- Standard version connectable to a computer via cable
- Bluetooth® version wirelessly connectable to a computer, tablet or smartphone
- Free TESA DATA-STUDIO software (basic version) included for creating measurement reports, statistical
management, measurement parameters,…
