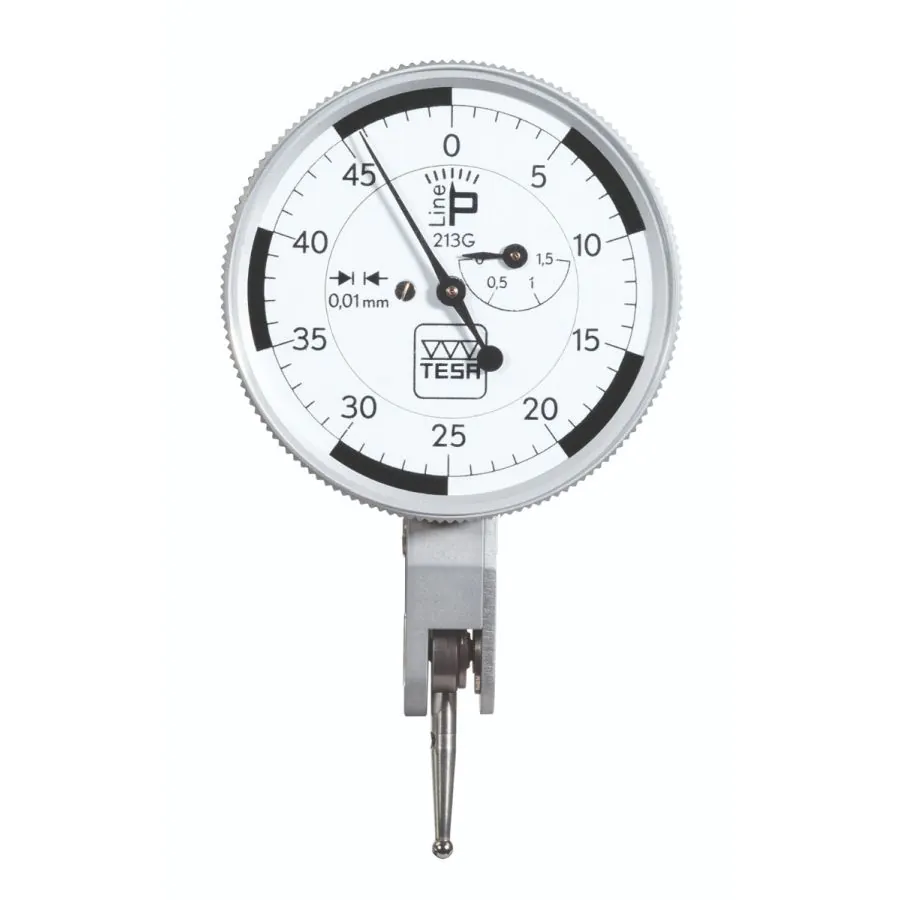

Tesa Lever-type dial test indicator P-Line 213G, 0.01mm graduation, 01810401
TESA TECHNOLOGY 01810401 - P-LINE 213G LEVER INDICATOR
- Circular staircase: 0 ÷ 25 ÷ 50
- Dial, Ø [mm]: 40
- Key length [mm]: 18
- Measuring force [N]: 0,35
- Measuring range [mm]: 1,5
- Resolution [mm]: 0,01
- Stroke / revolution [mm]: 0,5
| model type lever indicator | Standard |
|---|---|
| Dial Face Diameter | 40mm |
| Display | Analogue |
| Display Type | Metric |
| Dial Revolution | .5mm |
| Length | 18mm |
| graduation | .01mm |
| Circular Scale dial gauges | 0-25-50 |
| waterproof | No |
| spc output | No |
The new P-LINE range reflects all the quality and high precision of the well-known COMPAC brand. The benchmark in the field of lever-type dial test indicators, the success of these instruments is due to the long measurement range of up to 3 mm. The key lengths and available measurement distances are the longest on the market, while guaranteeing exceptional metrological performance (ISO 9493). The lever-type dial test indicator is invaluable for the recording of errors of form and position. Ideal for measuring axial and radial runout. Combined with decades of metrological expertise, the high-quality materials used make this new range an undisputed reference. The dial has been modernized with better readability thanks to larger numbers, a pure white dial for greater contrast and a new design of the circular segments.
Measuring range up to 3 mm
• Measuring insert stylus up to 36 mm
• Precision movement mounted on rubies
• Secondary pointer with revolution counter
• Movement with a very robust construction
