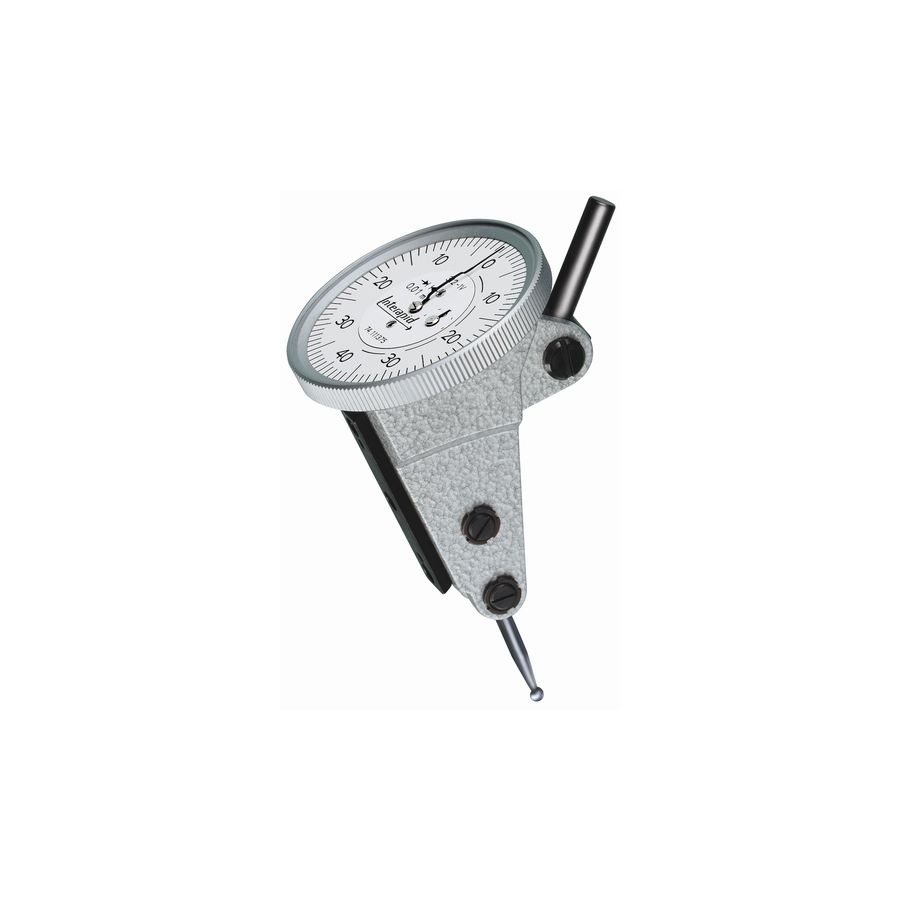

Tesa Interapid 312 Prependicular 074111375 range 1.6mm Res .01mm
Tesa Interapid 312 Prependicular 074111375 range 1.6mm Res .01mm
| model type lever indicator | Perpendicular |
|---|---|
| Dial Face Diameter | 37.5mm |
| Display | Analogue |
| Display Type | Metric |
| Tip Diameter | Ø2mm |
| Length | 16.5mm |
| graduation | .01mm |
| Circular Scale dial gauges | 0-40-0 |
| waterproof | No |
| spc output | No |
Tesa Interapid 312 Prependicular 074111375 range 1.6mm Res .01mm
INTERAPID 312 Dial Test Indicators very large measuring span – Ideal for inspecting
all significant size variations, e.g. on the surface plate – Measures position,
form and shape errors.
–– Safe reading thanks to secondary pointer totalling the number of revolutions made by the main pointer.
–– Bidirectional measuring with automatic reversal within the movement.
–– Pointer rotation direction is always constant due to automatic reversal effect.
–– Jewelled movement with rubies.
–– Ball-bearing lever system. Measuring insert swivelling through 210°.
–– Particularly robust due to full-metal construction.
–– Monobloc housing with mounting through dovetail clamping and a Ø 4 mm swivelling shank.
