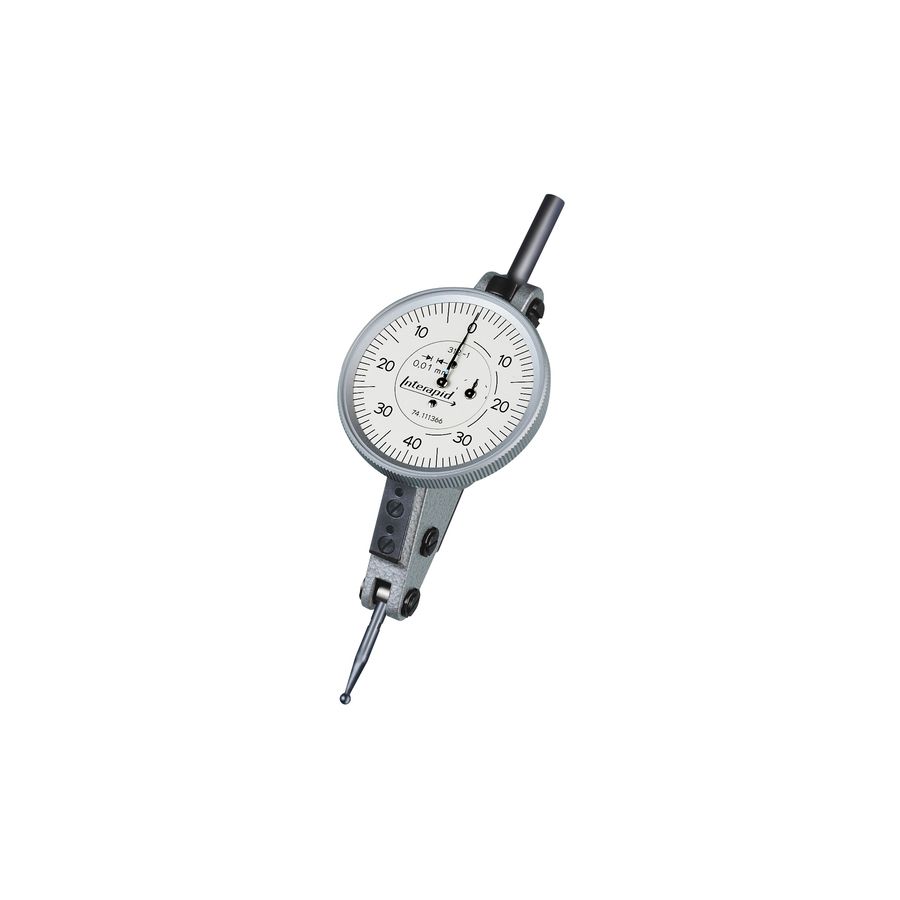

Tesa Interapid 312 model 074111366 range 1.6mm res 0.01mm
Tesa Interapid 312 model 074111366 range 1.6mm res 0.01mm
| model type lever indicator | Standard |
|---|---|
| Dial Face Diameter | 37.5mm |
| Display | Analogue |
| Display Type | Metric |
| Tip Diameter | Ø2mm |
| Length | 16.5mm |
| graduation | .01mm |
| Circular Scale dial gauges | 0-40-0 |
| waterproof | No |
| spc output | No |
Tesa Interapid 312 model 074111366 range 1.6mm res 0.01mm
INTERAPID 312 Dial Test Indicators very large measuring span – Ideal for inspecting
all significant size variations, e.g. on the surface plate – Measures position,
form and shape errors.
– Safe reading thanks to secondary pointer totalling the number of revolutions made by the main pointer.
– Bidirectional measuring with automatic reversal within the movement.
– Pointer rotation direction is always constant due to automatic reversal effect.
– Jewelled movement with rubies.
– Ball-bearing lever system. Measuring insert swivelling through 210°.
– Particularly robust due to full-metal construction.
– Monobloc housing with mounting through dovetail clamping and a Ø 4 mm swivelling shank.
