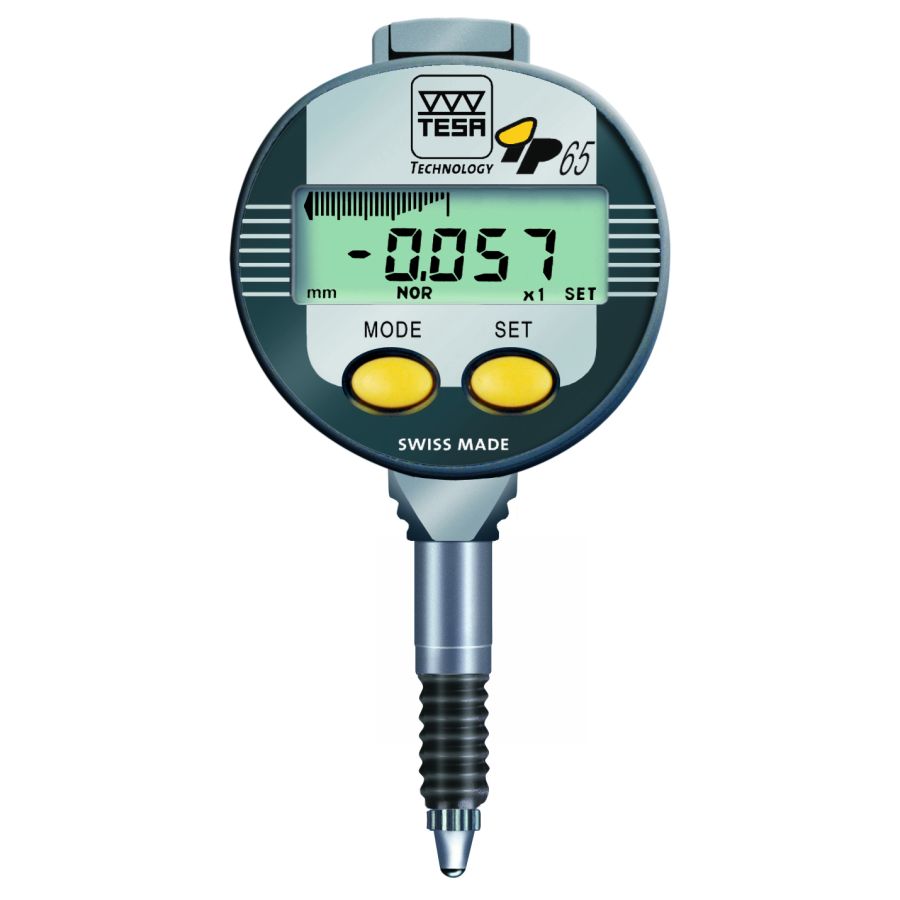

Tesa Digico 12 01930135 High Precision IP65 digital plunger clock 12.5mm travel with bellows protection .001mm resolution
TESA DIGICO 12 – HP
–– High precision measuring system.
–– Resistant to cutting oils and coolants (IP65).
–– Combined analogue/digital display.
–– Analogue reading from ±0.025 to ±1.25 mm.
–– NOR/MIN/MAX/MAX-MIN measuring modes.
–– 44 mm dial casing diameter.
–– RS 232 data output combined with external power supply.
–– Inductive measuring system, patented.
–– Zero-setting of display.
–– Direct conversion of metric/inch units.
–– Shut down: either automatic or blocked.
| Manufacturer | Tesa |
|---|---|
| Dial Revolution | 1mm |
| Display | Digital |
| Display Type | Inch/Metric |
| resolution | .00005"/.001mm |
| Dial Face Diameter | 40mm |
| spc output | No |
| Shock Proof | Yes |
| IP rating | IP54 |
| waterproof | Yes |
| Accuracy | .004mm |
| repeatability | .002mm |
TESA DIGICO 12 – HP
–– High precision measuring system.
–– Resistant to cutting oils and coolants (IP65).
–– Combined analogue/digital display.
–– Analogue reading from ±0.025 to ±1.25 mm.
–– NOR/MIN/MAX/MAX-MIN measuring modes.
–– 44 mm dial casing diameter.
–– RS 232 data output combined with external power supply.
–– Inductive measuring system, patented.
–– Zero-setting of display.
–– Direct conversion of metric/inch units.
–– Shut down: either automatic or blocked.
