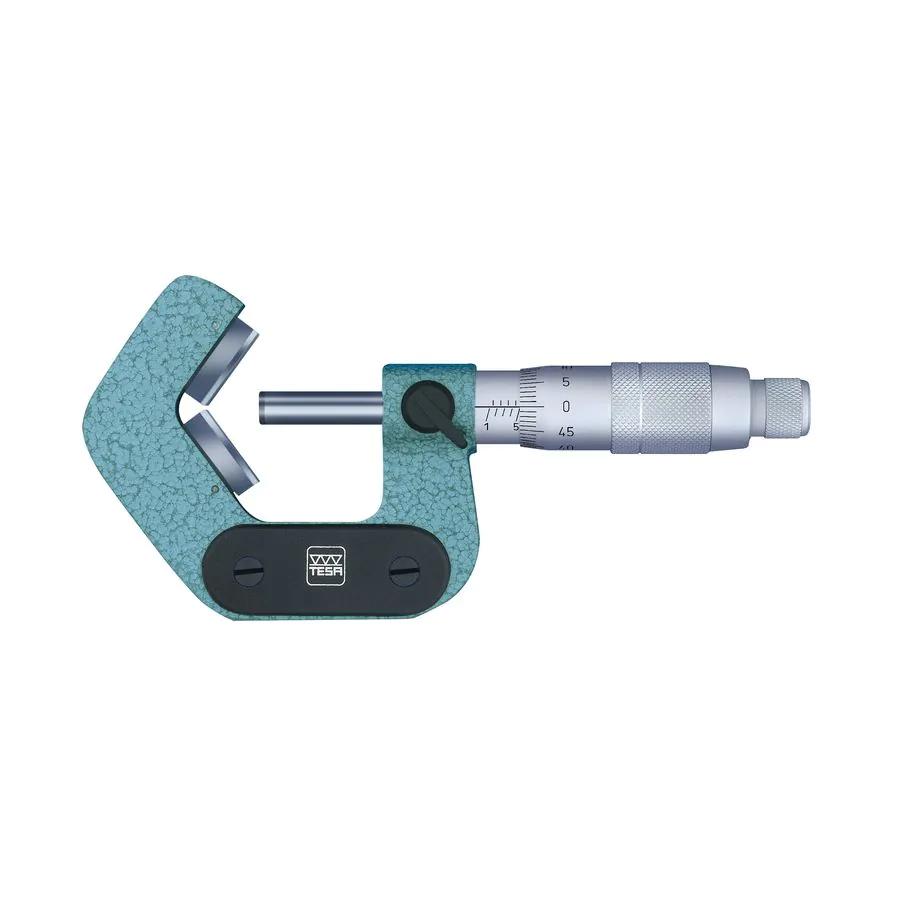

Tesa 00410003 ISOMASTER AS Micrometer with Prismatic Measuring Faces 20-35mm , Three-Flute V-Anvil (60')
SKU
00410003
Tesa
The micrometer ISOMASTER AS is used for measuring test pieces with an odd number of grooves such as milling cutters, taps, drills and spline shafts as well as polygons. It can also determine roundness errors on cylindrical work pieces.
The aperture angle of the prism is designed for work pieces having 3 or 5 flutes or their multiples.
Need more information?
contact us .
| Manufacturer | Tesa |
|---|---|
| spc output | No |
| graduation | .01mm |
| Display Type | Metric |
| Display | Vernier |
| waterproof | No |
| Spindle pitch | .75mm |
| Setting Standards Included | No |
The micrometer ISOMASTER AS is used for measuring test pieces with an odd number of grooves such as milling cutters, taps, drills and spline shafts as well as polygons. It can also determine roundness errors on cylindrical work pieces.
The aperture angle of the prism is designed for work pieces having 3 or 5 flutes or their multiples.
