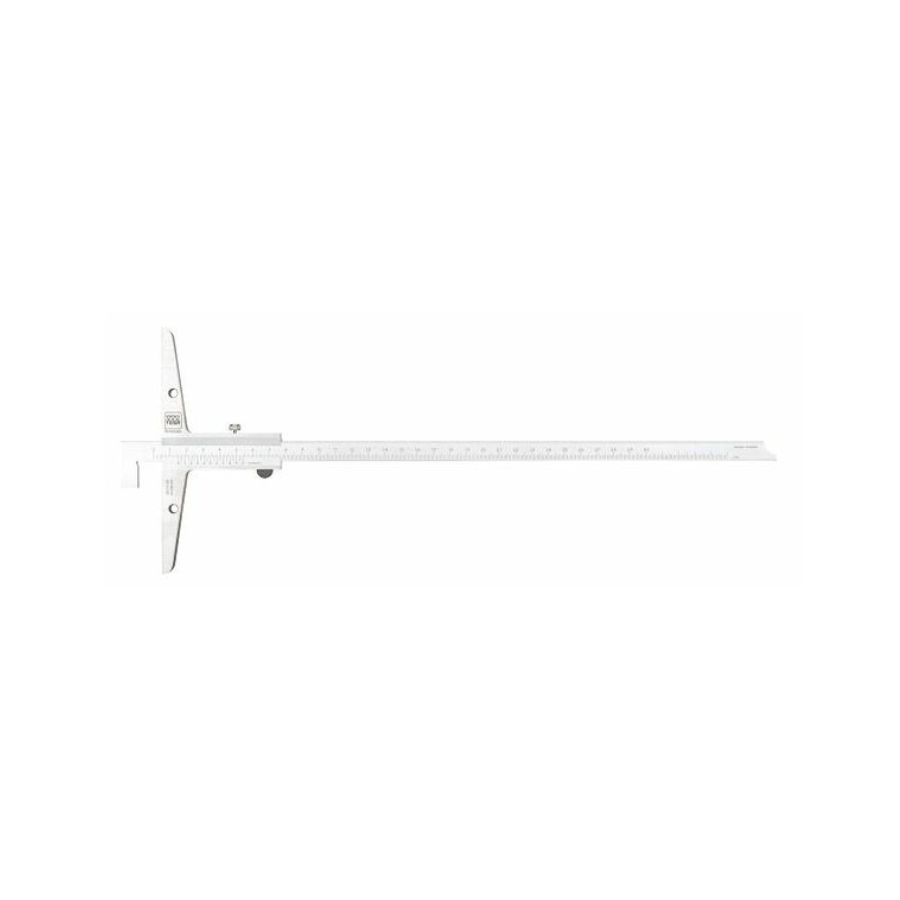

Tesa 00510277 Vernier depth caliper with fixed stop plate, range 0-200, graduation 0.02mm
SKU
00510277
£119.00
Tesa
Tesa 00510277 Vernier depth caliper with fixed stop plate, range 0-200, graduation 0.02mm
Need more information?
contact us .
| Manufacturer | Tesa |
|---|---|
| Display | Vernier |
| Display Type | Metric |
| graduation | .02mm |
| spc output | No |
| waterproof | No |
| Thumb Roller | No |
Tesa 00510277 Vernier depth caliper with fixed stop plate, range 0-200, graduation 0.02mm
• INSTRUMENT
- Perfect operation of the slider for a silky-smooth operation
- Mains scale slightly set back for protection against wear
• MEASUREMENT
- Satin-chrome scale and vernier for good reading
| Units | mm |
| Standard | ISO 13385-2:2019 |
| Max. perm. errors | L = length in mm For resolution 0,02: 0 < L ≤ 100: ± 30 µm 100 < L ≤ 300: ± 40 µm 300 < L ≤ 500: ± 50 µm For resolution 0,05: 0 < L ≤ 500: ± 50 µm |
| Material | Hardened stainless steel |
| Particular characteristic(s) | Locking screw |
| Remark(s) | Not all references in this range allow for the use of a bridge. For more precision, please refer to the chapter corresponding to accessories. |
| Included in delivery | Caliper Measurement report Declaration of conformity |
