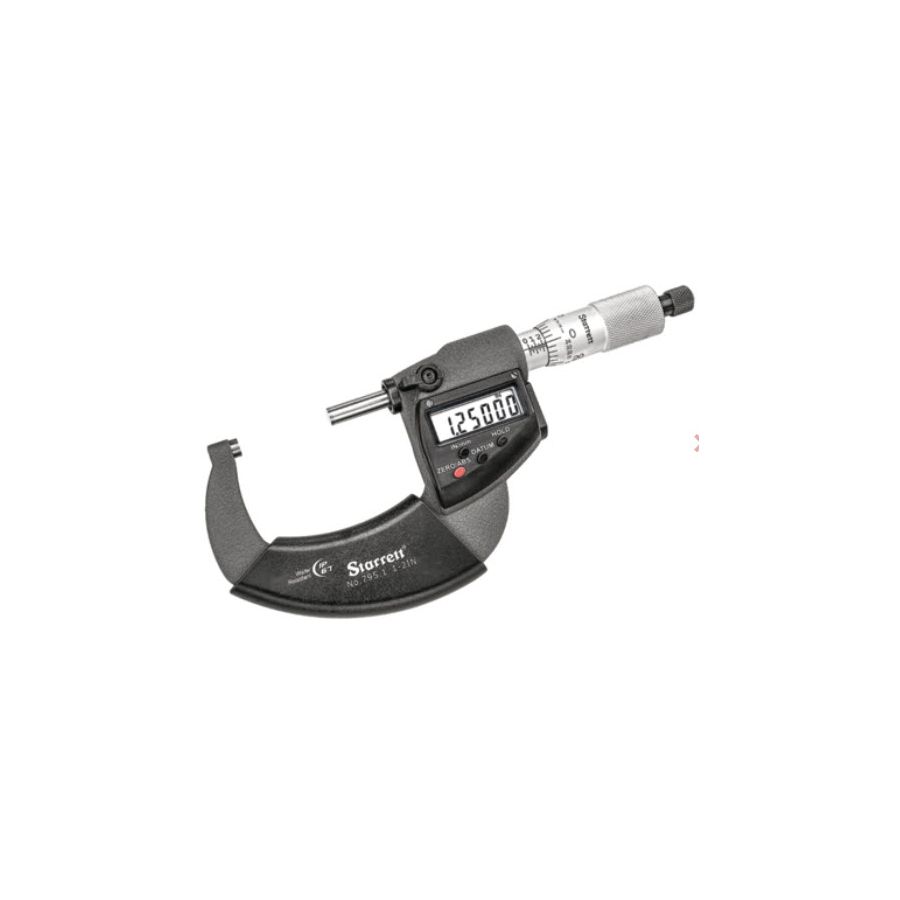

Starrett 795.1XRL-2 DigitalStarrett 795.1XRL-2 Digital Micrometer 1-2"/25-50mm, Resolution 0.001mm, IP67 coolant proof, RS232 SPC output, Includes setting standard
SKU
795.1XRL-2
£1,112.00
Starrett
Starrett 795.1XRL-2 DigitalStarrett 795.1XRL-2 Digital Micrometer 1-2"/25-50mm, Resolution .00005"/0.001mm, IP67 coolant proof, RS232 SPC output, Includes setting standard
Need more information?
contact us .
| Manufacturer | Starrett |
|---|---|
| spc output | Yes |
| Display Type | Inch/Metric |
| Display | Digital |
| resolution | .00005"/0.001mm |
| waterproof | Yes |
| IP rating | IP67 |
| Accuracy | ±.003mm |
| Anvil Diameter | .250"/6.35mm |
| Thimble Type | Rachet |
| Thimble Graduations | Inch |
| Setting Standards Included | Yes |
Starrett 795.1XRL-2 DigitalStarrett 795.1XRL-2 Digital Micrometer 1-2"/25-50mm, Resolution .00005"/0.001mm, IP67 coolant proof, RS232 SPC output, Includes setting standard
FEATURES
- Balanced frame design for comfortable and accurate measuring
- SPC Output
- Large, easy-to-read, high-contrast LCD digital readout
- Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
- No-glare black wrinkle finish on frame
- Hard and stable one-piece thimble with rachet lock permits one-hand operation of micrometer and uniform contact pressure
- Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
- Ring-type knurled lock nut for quick and sure locking
- Micro-lapped carbide measuring faces
SPECIFICATIONS
- Micrometer Type: Outside
- Range (in): 1-2"
- Range (mm): 25-50mm
- Resolution (in): .00005"
- Resolution (mm): 0.001mm
- Anvil/Spindle Material: Carbide
- Anvil Type: Flat
- Spindle Type: Flat
- Lock Nut Type: Lever
- Thimble Type: Ratchet
- Thimble Graduations: English
- Display Type: LCD
- SPC Output: Yes
- Accuracy (in): +/-.0001"
- Accuracy (mm): +/-.003mm
