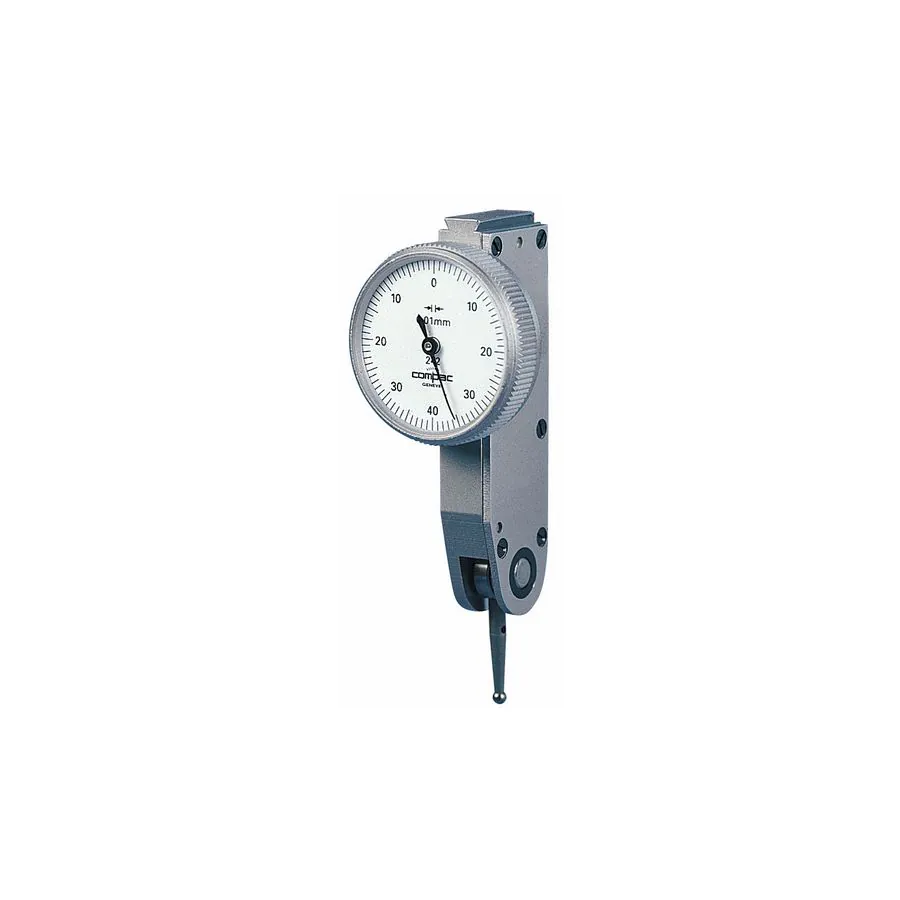

Tesa Compac series 240 Reduced range model part # 242G Range 0.8mm Res .01mm
COMPAC Dial Test Indicators
Essential for the workshop, but also in the inspection room or measuring laboratory
– Ideal for comparative measurement on a surface plate– Detect form and position errors – Measure axial and radial runouts, especially.
Technical Features
–– Long measuring travel, up to 3 mm.
–– Bidirectional measuring, without reversing lever.
–– Same rotation direction of pointers in the two measuring directions (clockwise pointer direction).
–– Swivelling probe through 180°.
–– Main pivot on self-aligning angular bearings, dimensioned oversize.
–– Dovetail mounting machined in the indicator housing.
–– Dull chrome-plated bezel and housing.
–– Rotating dial.
–– Insensitive to magnetic fields generated in mechanical workshops.
| model type lever indicator | Standard |
|---|---|
| Dial Face Diameter | 40mm |
| Display | Analogue |
| Display Type | Metric |
| Tip Diameter | Ø2mm |
| Length | 18mm |
| graduation | .01mm |
| Circular Scale dial gauges | 0-40-0 |
| waterproof | No |
| spc output | No |
