Air Gauge connecting rod

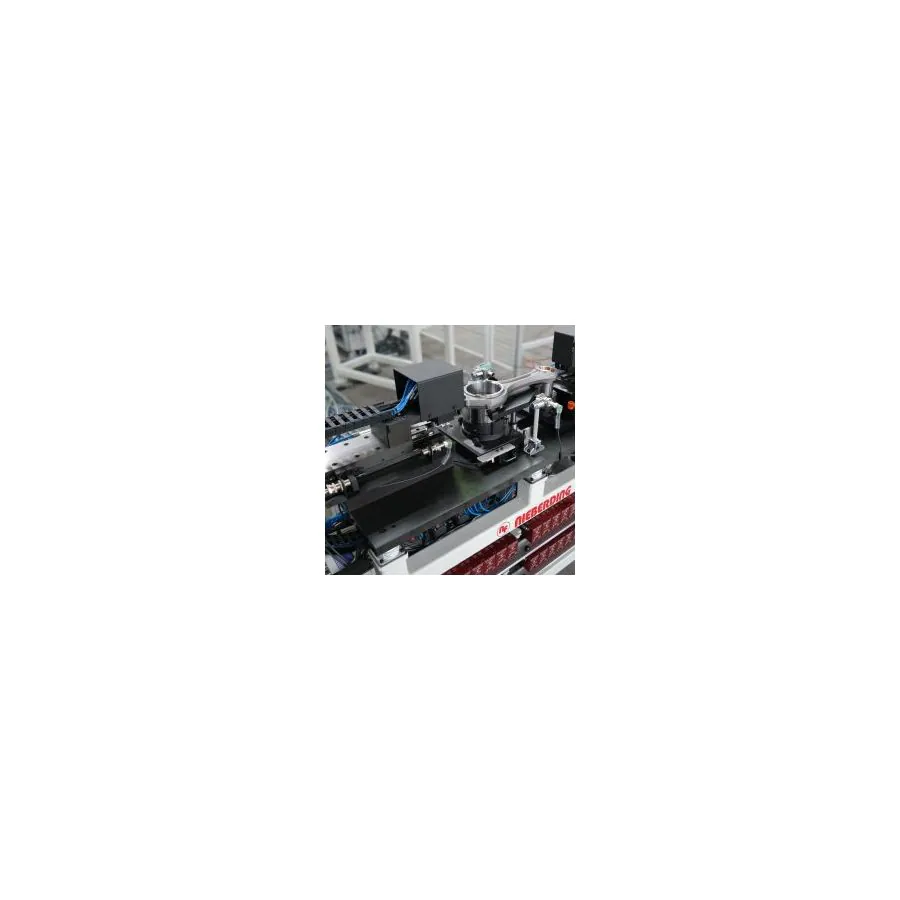

The fully equipped measuring cell for connecting rods includes two industrial robots, a measuring station, a scale, a laser, a screwdriver with torque monitoring, and a workpiece storage system for classifying components according to quality and condition.
Integrating the measuring cell into an existing production line is straightforward, as all components can be fully coordinated and aligned to suit the customer’s manufacturing process.
100% Final Inspection – Fully Automated
The measuring cell is fully integrated into the production line, enabling reliable and automated production monitoring. Thanks to automatic handling and calibration, 100% final inspection can be achieved with a cycle time of just 25 seconds.
Dedicated operators are not required, as the necessary inspection tasks can be carried out by the machine operator alongside routine machine maintenance. This helps improve efficiency while maintaining consistent quality control.
Range of Tasks
Reason for inspection:
Finished part inspection | Classification
Measured parameters:
Large eye | Small eye | Temperature | Weight
Measured features:
Diameter | Roundness | Cylindricity | Straightness | Parallelism | Center distance | Twist | Thickness | Symmetry
Marking:
Laser
Handling:
Conveyor belt | 6-axis industrial robot
Cycle time:
25 seconds
